Impact-Resistant Entry Systems

When used in areas requiring wind-borne debris protection, having the right product for your home is very important. That’s why the engineering behind the STORMFORCE impact-resistant package for select fiberglass entry doors provides you with peace of mind. With key features like thicker door panel skins, composite frames, rugged hinges and laminated glass, entry systems with STORMFORCE package enhancements can stand up to Mother Nature year after year.

  • Laminated doorglass provides protection against damaging wind-borne debris.
  • Aluminum doorlite frame provides the ultimate durability in extreme weather conditions.
  • Door panel has an insulated polyurethane foam core and door skins in smooth and woodgrain textures.
  • Composite frame system resists rot, decay, and insects.
  • Pre-hung in 4-9/16″, 5-1/4″, 6-9/16″, and 7-1/4″ composite frames.
  • Beautiful, even finish in choice of rich stain finishes and designer paint colors.
  • Schlage® residential single cylinder deadbolt and residential locksets are standard on 80″ doors.
  • Standard on 96″ doors, Trilennium® multi-point hardware adds strength and increased security.

Impact-resistant Hinged Patio Doors and Doors with Sidelites incorporate “Boxed Sidelites” and each are shipped separately for field assembly in their individual openings. Interior and exterior trims can be used to cover the framing members separating the individual doors and sidelites. Both will be finished to complement the finish of the entry system.

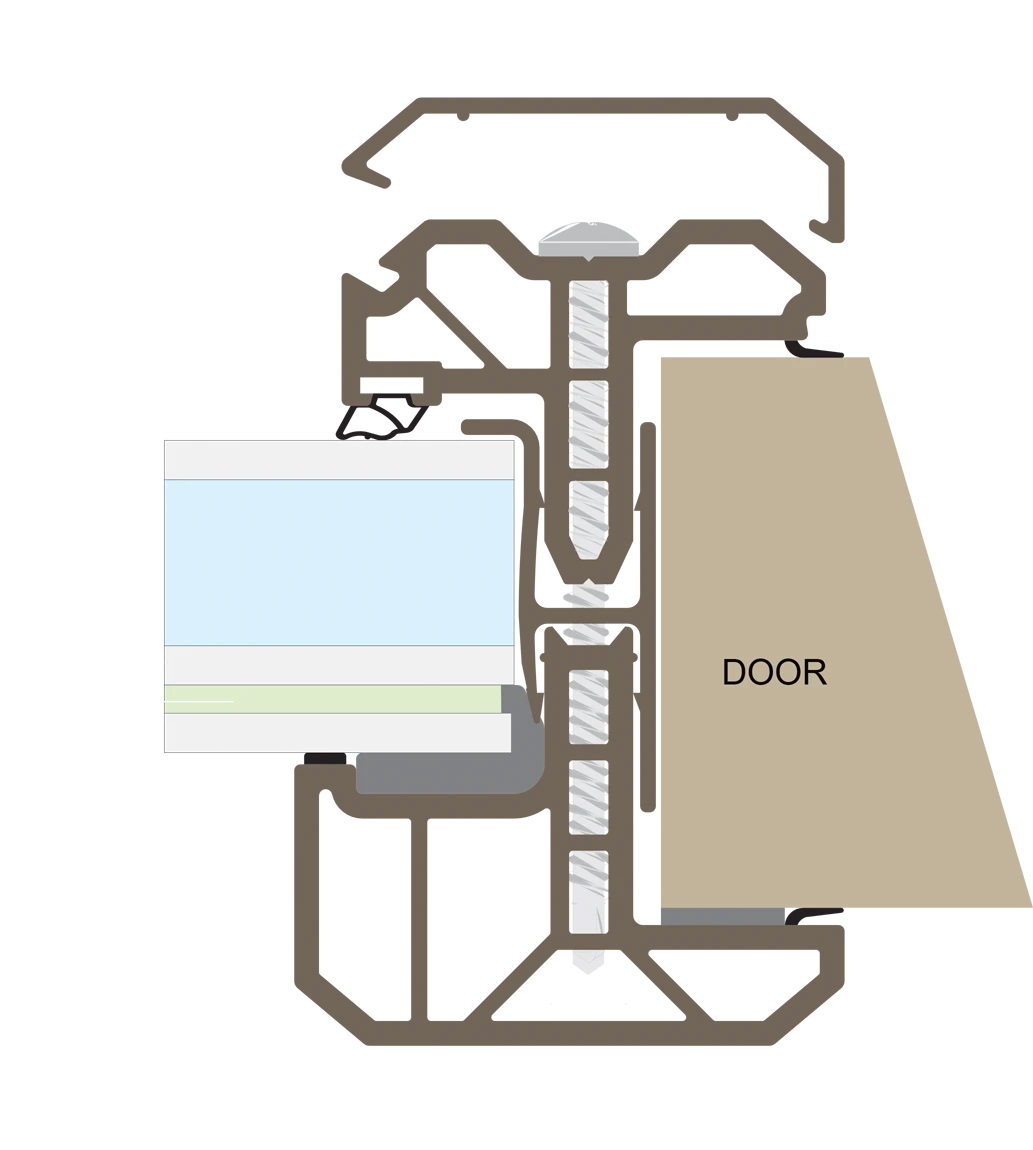

Impact-resistant Doorlite Frame

Why Laminated Glass is Important

During a storm, if a building is breached through a broken window or doorglass, wind may enter the structure and cause an increase in air pressure. This vacuum effect could lift the roof and collapse the walls. Laminated glass helps to preserve the building envelope, keeping the wind and other elements outside.

In severe weather, the frame system, laminated glass and sealant must work together to resist the catastrophic forces applied during severe weather. Stormforce Fiberglass Entry Systems do just that. Similar to the glass used in car windshields and aircraft windows, the insulating glass features an impact-resistant plastic interlayer that is bonded between two pieces of glass under heat and pressure. The interlayer remains adhered to the glass fragments and resists penetration, even if the glass pane is broken – protecting against flying debris and hurricane-force winds. In addition, laminated glass guards against forced entry – resisting repeated impacts from hammers, bricks or similar weapons. It also helps to control unwanted outside noise from entering the home and filters out 99% of the sun’s most damaging rays that fade carpets and draperies.

You can choose different paint and stain colors for the inside and outside of your door. Doors with a woodgrain texture can be stained or painted. Smooth surface doors are only available painted. Impact-resistant doors with blinds are available in White only.
Insulating laminated glass features an inner layer protecting against flying debris and hurricane-force winds, forced entry and unwanted outside noise.
You can choose different paint and stain colors for the inside and outside of your door. Doors with a woodgrain texture can be stained or painted. Smooth surface doors are only available painted.
You can choose different paint and stain colors for the inside and outside of your door. Doors with a woodgrain texture can be stained or painted. Smooth surface doors are only available painted.
Color matched to the frame, the installation hole cover strip provides installers a method of hiding the installation fasteners when anchoring the door to an opening. Standard on 96" impact-resistant doors and optional on 80" impact-resistant doors.
Impact-resistant
Decorative Glass

Heirlooms

Privacy: 9

Laurel

Privacy: 7

Princess

Privacy: 7

Windsor

Privacy: 5

Wyngate

Privacy: 9
Impact-resistant
Privacy Glass

Blanca

Privacy: 9

Obscure

Privacy: 9

Streamed

Privacy: 9

Turtle Glass

Privacy: 1
Caming Options
caming-sf-upaded

Turtle Glass

Thousands of marine turtles nest in U.S. coastal areas. State and local ordinances protect hatchling turtles by limiting brightness of inside-to-outside visible light transmittance. Selected styles of Classic Glass STORMFORCE entry doors and Classic Glass doors with the Severe Weather glass option can include tinted grey glass that meet these requirements.

80″ Impact-Resistant Entry Systems

All 80″ Impact-resistant Full Lite doors are available as Extra Wide Sidelites, except for Low E 12L.

Full Lite
Low E 1L
10L
15L
Raise, Lower, Tilt Blinds
Turtle Glass
Blanca
Obscure
Streamed
Laurel
Princess
Windsor
Wyngate
1 Panel 3/4 Lite
Low E 1L
12L
Blanca
Streamed
London
Windsor
Wyngate
2 Panel 1/2 Lite
Low E 1L
9L
Raise, Lower, Tilt Blinds
Turtle
Blanca
Obscure
Streamed
4 Panel Rectangle
Low E 1L
Blanca
Wyngate
Solid Doors
Flush
6 Panel
2 Panel 3/4
Full Sidelites
Low E 1L
5L
Raise, Lower, Tilt Blinds
Turtle Glass
Blanca
Obscure
Streamed
Heirlooms
Laurel
Princess
Windsor
Wyngate

All blinds on impact-resistant doors are raise, lower, tilt. Blinds are available in white only. Internal grids on impact-resistant doors are 5/8″ flat grids. Contoured grids are unavailable. Not all door styles available in all sizes. See size availability chart for more information, or contact your sales representative.

Impact-resistant
Decorative Glass

Heirlooms

Privacy: 9

Laurel

Privacy: 7

Princess

Privacy: 7

Windsor

Privacy: 5

Wyngate

Privacy: 9
Impact-resistant
Privacy Glass

Blanca

Privacy: 9

Obscure

Privacy: 9

Streamed

Privacy: 9

Turtle Glass

Privacy: 1
Caming Options
caming-sf-upaded

Turtle Glass

Thousands of marine turtles nest in U.S. coastal areas. State and local ordinances protect hatchling turtles by limiting brightness of inside-to-outside visible light transmittance. Selected styles of Classic Glass STORMFORCE entry doors and Classic Glass doors with the Severe Weather glass option can include tinted grey glass that meet these requirements.

96″ Impact-Resistant Entry Systems

All 96″ Impact-resistant Full Lite doors are available as Extra Wide Sidelites.

Full Lite
Low E 1
Low E 18L
Turtle Glass
Blanca
Obscure
Streamed
Laurel
Windsor
Wyngate
1 Panel 3/4 Lite
Low E 1L
Low E 15L
Raise, Lower, Tilt Blinds
Turtle Glass
Blanca
Obscure
Streamed
Laurel
Princess
Windsor
Wyngate
2 Panel 1/2 Lite
Low E 1L
Low E 12L
Blanca
Streamed
Windsor
Wyngate
Solid Doors
2 Panel 3/4 Elite
2 Panel Arch Top
4 Panel
6 Panel
Full Sidelites
Low E 1L
Low E 6L
Turtle Glass
Blanca
Obscure
Streamed
Laurel
Windsor
Wyngate
3/4 Sidelites
Low E 1L
Low E 5L
Raise, Lower, Tilt Blinds
Turtle Glass
Streamed
Obscure
Blanca
Laurel
Princess
Windsor
Wyngate

All blinds on impact-resistant doors are raise, lower, tilt. Blinds are available in white only. Internal grids on impact-resistant doors are 5/8″ flat grids. Contoured grids are unavailable. Not all door styles available in all sizes. See size availability chart for more information, or contact your sales representative.

Impact-Resistant Entry Systems

Sizing & Availability

HVHZ available only on 36″ x 80″ doors in Oak Grain finish only.
HVHZ is unavailable on 1 Panel 3/4 Lite doors.

FULL LITE24" x 80"28" x 80"30" x 80"32" x 80"34" x 80"36" x 80"32" x 96"36" x 96"
Low E 1LS/OS/OS/OS/OS/OS/OS/OS/O
Low E 10L (Internal Grids)*S/OS/O
Low E 15L (Internal Grids)*S/OS/OS/OS/O
Low E 18L (Internal Grids)*S/OS/O
Low E 1L Blinds (Raise, Lower, Tilt)S/OS/OS/OS/O
BlancaS/OS/OS/OS/OS/OS/OS/OS/O
ObscureS/OS/OS/OS/OS/OS/OS/O
StreamedS/OS/OS/OS/OS/OS/OS/OS/O
Grey Turtle GlassS/OS/OS/OS/OS/OS/O
Laurel (Platinum Caming)S/OS/OS/OS/OS/O
Princess (Platinum Caming)S/OS/OS/O
Windsor (Patina Caming)S/OS/OS/OS/OS/OS/O
Wyngate (Wrought Iron Caming)S/OS/OS/OS/OS/O
1 Panel 3/4 Lite24" x 80"28" x 80"30" x 80"32" x 80"34" x 80"36" x 80"32" x 96"36" x 96"
Low E 1LSS/OS/OS/O
Low E 12L (Internal Grids)*SS/O
Low E 15L (Internal Grids)*S/OS/O
BlancaSS/OS/OS/O
ObscureS/OS/O
StreamedSS/OS/OS/O
Gray Turtle GlassS/OS/O
Low E Blinds (Raise, Lower, Tilt)S/OS/O
Laurel (Platinum Caming)S/OS/O
Princess (Platinum Caming)S/OS/O
Windsor (Patina Caming)SS/OS/OS/O
Wyngate (Wrought Iron Caming)SS/OS/OS/O
2 Panel 1/2 Lite24" x 80"28" x 80"30" x 80"32" x 80"34" x 80"36" x 80"32" x 96"36" x 96"
Low E 1LS/OS/OS/OS/OS/OS/O
Low E 9L (Internal Grids)*S/OS/OS/OS/O
Low E 12L (Internal Grids)*S/OS/O
Low E 1L Blinds (Raise, Lower, Tilt)S/OS/OS/OS/O
BlancaS/OS/OS/OS/OS/OS/O
ObscureS/OS/OS/O
StreamedS/OS/OS/OS/OS/OS/O
Grey Turtle GlassS/OS/OS/O
Heirlooms (Satin Nickel Caming)S/OS/OS/O
Windsor (Patina Caming)S/OS/O
Wyngate (Wrought Iron Caming)S/OS/O
4 Panel Rectangle24" x 80"28" x 80"30" x 80"32" x 80"34" x 80"36" x 80"32" x 96"34" x 96"
Low E 1LS/OS/OS/O
BlancaS/OS/OS/O
Laurel (Platinum Caming)S/OS/OS/O
Wyngate (Wrought Iron Caming)S/OS/OS/O
Solid Doors24" x 80"28" x 80"30" x 80"32" x 80"34" x 80"36" x 80"32" x 96"36" x 96"
Solid FlushS/OS/O
Solid 4 PanelS/OS/O
Solid 6 PanelS/OSS/OOO
Solid 2 Panel 3/4 EliteSS/OS/OS/O
Solid 3 Panel ArchOO

* Internal grids on impact-resistant doors are 5/8″ flat grids. Contoured and external grids are unavailable.
All blinds on impact-resistant doors are raise, lower, tilt.
Blinds are available in white only.
Not all door styles available in all sizes.
Continuous sill unavailable.
Installer must frame each separately.
Door lite frame is smooth aluminum and cannot be stained.
A complementary paint color will be used where a door lite is installed in any door that has been ordered with a stain finish.
HVHZ available only on 36″ x 80″ doors in Oak Grain finish.
HVHZ is unavailable on 1 Panel 3/4 Lite doors.

3/4 Sidelite12" x 96"14" x 96"
Low E 1LS/OS/O
Low E 5L (Internal Grids)*S/OS/O
BlancaS/OS/O
ObscureS/OS/O
StreamedS/OS/O
Grey Turtle GlassS/OS/O
Laurel (Platinum Caming)S/OS/O
Princess (Platinum Caming)S/OS/O
Windsor (Patina Caming)S/OS/O
Wyngate (Wrought Iron Caming)S/OS/O
Full Sidelite12" x 80"14" x 80"12" x 96"14" x 96"
Low E 1LS/OS/OS/OS/O
Low E 5L (Internal Grids)*S/OS/OS/OS/O
Low E 6L (Internal Grids)*S/OS/O
Low E 1L Blinds (Raise, Lower, Tilt)S/OS/O
BlancaS/OS/OS/OS/O
ObscureS/OS/OS/OS/O
StreamedS/OS/OS/OS/O
Grey Turtle GlassS/OS/OS/OS/O
Heirlooms (Satin Nickel Caming)S/OS/O
Laurel (Platinum Caming)S/OS/OS/OS/O
Princess (Platinum Caming)S/OS/O
Windsor (Patina Caming)S/OS/OS/OS/O
Wyngate (Wrought Iron Caming)S/OS/OS/OS/O
Extra Wide Sidelites32" x 80"34" x 80"36" x 80"32" x 96"36" x 96"
Low E 1LS/OS/OS/OS/OS/O
Low E 15L (Internal Grids)*S/OS/OS/O
Low E 18L (Internal Grids)*S/OS/O
Low E 1L Blinds (Raise, Lower, Tilt)S/OS/OS/O
BlancaS/OS/OS/OS/OS/O
ObscureS/OS/OS/OS/OS/O
StreamedS/OS/OS/OS/OS/O
Grey Turtle GlassS/OS/OS/OS/OS/O
Laurel (Platinum Caming)S/OS/OS/OS/OS/O
Princess (Platinum Caming)S/OS/OS/O
Windsor (Patina Caming)S/OS/OS/OS/OS/O
Wyngate (Wrought Iron Caming)S/OS/OS/OS/OS/O
