Impact Window Features

Key Features
  • Heavy Duty 3 ¼” Frame
  • Strategically Reinforced Vinyl Extrusions
  • Strong Thick-walled Vinyl Profiles
  • Precision-mitered, Fusion-welded Frames and Sash
  • Sealed, Multi-hollow Chambers
  • Dual-pane 1″ Impact-resistant Laminated Glass
  • Standard, Energy-efficient Low E / Argon
  • Architecturally-beveled Vinyl Profiles
  • Corrosion-resistant Components
  • High-performance Glazing Compound
Importance of Laminated Glass

During a storm, if a building is breached through a broken window, wind may enter the structure and cause an increase in air pressure. This vacuum effect could lift the roof and collapse the walls. Laminated glass helps preserve the structure, keeping wind and other elements outside.

Impact-Resistant Laminated Glass

Similar to the glass used in car windshields and aircraft windows, 8800’s insulating glass features an impact-resistant plastic interlayer that is bonded between two pieces of glass under heat and pressure. The interlayer remains adhered to the glass fragments and resists penetration, even if the glass pane is broken – protecting against flying debris and hurricane-force winds. In addition, laminated glass guards against forced entry – resisting repeated impacts from hammers, bricks or similar weapons. It also helps to control unwanted outside noise from entering the home and filters out 99% of the sun’s most damaging rays that fade carpets and draperies.

Warm-Edge Technology

The performance of the spacer in the insulating glass is critical to the efficiency of your window as well as its longevity. The innovative U-channel spacer design creates a powerful thermal barrier that reduces the amount of heat loss conducted through the window and more effectively retains the insulating argon gas that is critical to the window’s thermal performance. Because this spacer system helps keep the window glass and its edges warmer, it in turn helps to lower energy bills and keep your home more comfortable.

Specific Features

Choose a product below to see Product Line Features.

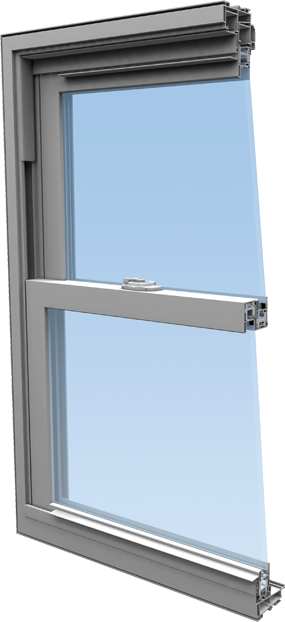

8800 SERIES DOUBLE HUNG

Standard Features
  • Impact-resistant product for coastal applications.
  • Sash profiles are reinforced with aluminum that fits tightly into pocketed vinyl chambers on all sides to provide ultimate impact-resistant performance.
  • Frame and sash are high-heat fusion welded at precision mitered corners for improved strength and water-tightness.
  • The impact-resistant 1” laminated insulating glass not only offers dependable impact performance, but also provides UV protection and improved thermal performance as well.
  • Continuous, integral lift rails provide fingertip ease of operation and are molded into the sash itself to prevent them from becoming loose or breaking away from sash with regular use.
  • A weatherstripped meeting rail, with a dual seal from the sash to the frame, creates a positive seal keeping out harsh elements.
  • A heavy-duty, constant force corrosion-resistant balance system provides durability and easy, smooth operation.
  • Through an innovative tilt latch designed for coastal areas, both top and bottom sash tilt in to allow for easy cleaning inside the home.
  • Covered weep holes in the sill control water drainage.

8800 series

double hung

Interior/Exterior Colors
White
Tan
Clay
Mesa Red *
Hunter Green *
Brown *
Bronze *
Earthtone *

* Factory-applied exterior coated colors.

Interior Woodgrains
White Oak
Light Oak
Dark Oak
Maple
Cherry

White Oak interior only available on Tan or Clay exterior vinyl and all factory-applied coated colors. All other Woodgrain interiors available on all vinyl colors as well as all factory-applied coated colors.

Glass Options
Tinted Bronze
Tinted Grey
Obscure
Grid Patterns
Colonial
Prairie
Perimeter
Internal Grid Options
White
Tan
Clay
Brass
White Oak
Light Oak
Dark Oak
Cherry
Maple
Cam Locks
White
Tan
Clay
Bright Brass
Antique Bronze
Bronze
Satin Nickel
Marine-grade, corrosion-resistant cam locks always remain warm to the touch and are color-matched to the window. Two locks are standard.
A unique, high performance tilt latch is crucial to the Double Hung's performance. In the locked position, the rugged latch integrates deep within the wall studs and window sash reinforcement.
The sill dam height is 2-11/16" to further reduce water penetration.
The sloped sill design prevents rainwater from pooling during storms.
Operable sash move easily on tightly-wound coil springs that will never need adjustment.
Insulating laminated glass features an inner layer protecting against flying debris and hurricane-force winds, forced entry and unwanted outside noise.
Standard Features
Frame Type Impact Replacement (no nailing fin or J-channel)
Exterior Frame Design Beveled
Frame Construction Welded
Sash Construction Welded
Jamb Thickness 3-1/4″
Vinyl Profile Chambered
Vinyl Color White
Sill Design Sloped
Spacer System Intercept®
Insulating Glass Unit 1" Impact Laminated Insulating Glass
Glass Type Low E / Argon
Glass Strength Double
Weatherseals Finseal and Sill Bulb Barrier
Sash Operation 3/4" Constant Force Coil Spring Balance System
Meeting Rail Interlocking Meeting Rail
Cam Lock Dual
Screen Extruded Fiberglass Half
Lift Rail Extruded
Optional Features
Vinyl Colors Tan or Clay
Factory-applied Exterior Colors Mesa Red, Hunter Green, Earth Tone, Brown, Bronze
Woodgrain Interiors White Oak (tan or Clay exterior only), Light Oak, Dark Oak, Maple, Cherry
Screen Full Fiberglass Extruded, Aluminum Half or Full Screen
Glass Double Low E, Tempered
Decorative Glass Tinted Bronze, Tinted Grey, Obscure
Internal Grids: Colonial or Perimeter White, Tan, Clay, Woodgrains (interior only) or Brass
Decorative Hardware Satin Nickel, Brass, Antique Brass, Bronze

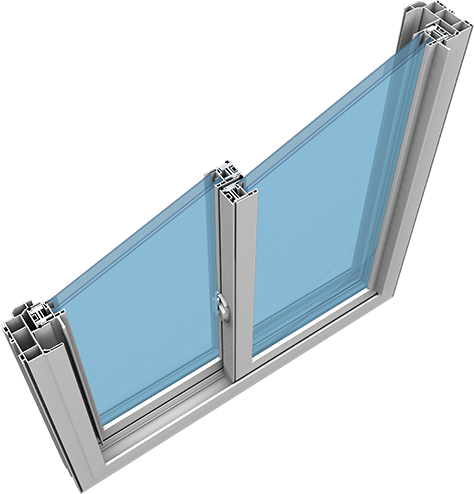

8800 SERIES DOUBLE SLIDER &
3 LITE END VENT

Standard Features
  • Impact-resistant product for coastal applications.
  • Sash profiles are reinforced with aluminum to provide ultimate impact-resistance.
  • Frame and sash are high-heat fusion welded at precision mitered corners for strength and water-tightness.
  • The impact-resistant 1” laminated insulating glass not only offers dependable impact performance, but also provides UV protection and improved thermal performance.
  • Unique water drainage system greatly improves water evacuation and minimizes air infiltration.
  • Dual seal sash-to-frame weatherstripping creates a premier barrier against the elements.
  • Marine-grade, corrosion-resistant cam locks remain warm to the touch and the colors complement all 14 available window color combinations.
  • Slider windows feature an innovative raised monorail track system in the sill that not only provides reinforcement, but also allows sash to glide smoothly above the dirt and debris that tends to accumulate.

8800 series

double slider

Configurations

Sliders are available in a Double Slider, 1/4-1/3-1/4 End Vent and a 1/3-1/3-1/3 End Vent Slider.

Double Slider
3-Lite End Vent Slider ( 1/4 - 1/4 - 1/4)
3-Lite End Vent Slider ( 1/3 - 1/3 - 1/3)
Interior/Exterior Colors
White
Tan
Clay
Mesa Red *
Hunter Green *
Brown *
Bronze *
Earthtone *

* Factory-applied exterior coated color.

Interior Woodgrains
White Oak
Light Oak
Dark Oak
Maple
Cherry

White Oak interior only available on Tan or Clay exterior vinyl and all factory-applied coated colors. All other Woodgrain interiors available on all vinyl colors as well as all factory-applied coated colors.

Glass Options
Tinted Bronze
Tinted Grey
Obscure
Grid Patterns
Colonial
Prairie
Perimeter
Internal Grid Options
White
Tan
Clay
Brass
White Oak
Light Oak
Dark Oak
Cherry
Maple
Cam Locks
White
Tan
Clay
Bright Brass
Antique Bronze
Bronze
Satin Nickel
Not only does the Anti-lift Security Block virtually eliminate unwanted sash removal, it assists with the retention of the sash when they need to be held into the frame at the most critical of times. Illustration above left shows the anti-lift block when the sash is at rest under normal conditions.
The illustration above right shows the anti-lift block engaged with the sash under pressure during high winds, holding the sash in place.
Rollers are completely concealed inside the sash.
Tandem nylon rollers with stainless steel bearings resist corrosion.
The sash of 8800 horizontal sliding windows travel securely on an aluminum monorail system.
Insulating laminated glass features an inner layer protecting against flying debris and hurricane-force winds, forced entry and unwanted outside noise.
Standard Features
Frame Type Impact Replacement (no nailing fin or J-channel)
Exterior Frame Design Beveled
Frame Construction Welded
Sash Construction Welded
Jamb Thickness 3-1/4″
Vinyl Profile Chambered
Vinyl Color White
Spacer System Intercept®
Insulating Glass Unit 1" Impact Laminated Insulating Glass
Glass Type Low E / Argon
Glass Strength Double
Weatherseals Finseal
Sash Operation Ball Bearing Rollers
Meeting Stile Interlocking
Cam Lock Dual
Screen Extruded Fiberglass Half
Pull Stile Extruded
Optional Features
Vinyl Colors Tan or Clay
Factory-applied Exterior Colors Mesa Red, Hunter Green, Earth Tone, Brown, Bronze
Woodgrain Interiors White Oak (tan or Clay exterior only), Light Oak, Dark Oak, Maple, Cherry
Screen Full Fiberglass Extruded, Aluminum Half or Full Screen
Glass Double Low E, Tempered
Decorative Glass Tinted Bronze, Tinted Grey, Obscure
Internal Grids: Colonial or Perimeter White, Tan, Clay, Woodgrains (interior only) or Brass
Decorative Hardware Satin Nickel, Brass, Antique Brass, Bronze

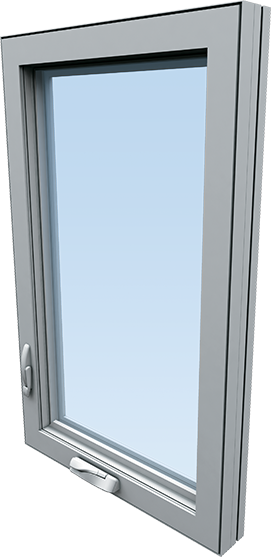

8800 SERIES CASEMENT WINDOW

Standard Features
  • Side-hinged impact window with sash that open toward the outside.
  • Fully concealed multi-point lock system with a zippered locking effect ensures engagement of top lock point.
  • Nesting folding handle is designed to minimize interference with window treatments such as curtain and blinds.
  • The sturdy frames and sash are made from thick premium quality vinyl extrusions and do not require additional reinforcement.
  • Operators utilize a sealable housing to reduce air and water infiltration.
  • Heavy-gauge steel hinges allow exterior glass pane to be cleaned from inside the home, and open the window to almost 90 degrees for maximum ventilation. A stainless steel hardware option offers an extended warranty.
  • Triple weatherstripping creates remarkable air-tightness to prevent drafts and help reduce heating and air conditioning costs.
  • The impact-resistant 1” laminated insulating glass not only offers dependable impact performance, but also provides UV protection and improved thermal performance.

Awning Windows

also available

Awning windows are very similar to Casement windows, but are hinged at the top of the window. Opening from the bottom, Awning window sash open towards the outside of the home.

8800 series

Casement &

Awning

Interior/Exterior Colors
White
Tan
Clay
Mesa Red *
Hunter Green *
Brown *
Bronze *
Earthtone *

* Factory-applied exterior coated colors.

Interior Woodgrains
White Oak
Light Oak
Dark Oak
Maple
Cherry

White Oak interior only available on Tan or Clay exterior vinyl and all factory-applied coated colors. All other Woodgrain interiors available on all vinyl colors as well as all factory-applied coated colors.

Glass Options
Tinted Bronze
Tinted Grey
Obscure
Grid Patterns
Colonial
Prairie
Perimeter
Internal Grid Options
White
Tan
Clay
Brass
White Oak
Light Oak
Dark Oak
Cherry
Maple
Folding Handles
White
Tan
Clay
Bright Brass
Antique Brass
Bronze
Satin Nickel
A heavy-duty hinge system securely supports the sash when opened.
Sash are locked at multiple points with one lever.
Crank handles fold down and nest when not in use.
Insulating laminated glass features an inner layer protecting against flying debris and hurricane-force winds, forced entry and unwanted outside noise.
Standard Features
Frame Type Impact Replacement (no nailing fin or J-channel)
Exterior Frame Design Beveled
Frame Construction Welded
Sash Construction Welded
Jamb Thickness 3-1/4″
Vinyl Profile Chambered
Vinyl Color White
Spacer System Intercept®
Insulating Glass Unit 1" Impact Laminated Insulating Glass
Glass Type Low E / Argon
Glass Strength Double
Weatherseals Triple
Crank Handle Single, Folding
Lock Multi-point System
Screen Full, Fiberglass Extruded
Sash Hinge Heavy Duty
Sash Opening Right or Left Hinge / Side Open
Optional Features
Vinyl Colors Tan or Clay
Factory-applied Exterior Colors Mesa Red, Hunter Green, Earth Tone, Brown, Bronze
Woodgrain Interiors White Oak (tan or Clay exterior only), Light Oak, Dark Oak, Maple, Cherry
Screen Aluminum Full
Glass Double Low E, Tempered
Decorative Glass Tinted Bronze, Tinted Grey, Obscure
Internal Grids: Colonial or Perimeter White, Tan, Clay, Woodgrains (interior only) or Brass
Decorative Hardware Satin Nickel, Brass, Antique Brass, Bronze

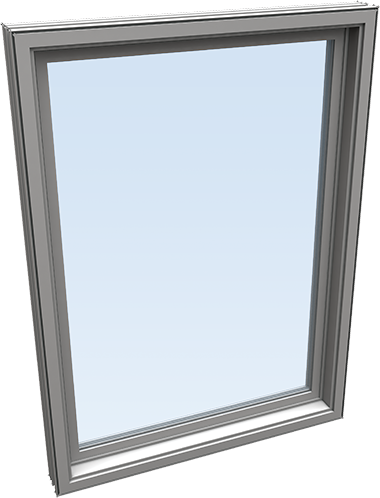

8800 SERIES PICTURE WINDOW

Standard Features
  • Impact-resistant non-operating replacement window.
  • Architecturally-beveled exterior frame complements the frame of other 8800 operating units.
  • The impact-resistant 1” laminated insulating glass not only offers dependable impact performance, but also provides UV protection and improved thermal performance.
  • Vinyl extrusions are impact and corrosion-resistant and their multi-hollow chambered interior design adds strength and helps improve thermal performance.

8800 series


window

Interior/Exterior Colors
White
Tan
Clay
Mesa Red *
Hunter Green *
Brown *
Bronze *
Earthtone *

* Factory-applied exterior coated colors.

Interior Woodgrains
White Oak
Light Oak
Dark Oak
Maple
Cherry

White Oak interior only available on Tan or Clay exterior vinyl and all factory-applied coated colors. All other Woodgrain interiors available on all vinyl colors as well as all factory-applied coated colors.

Glass Options
Tinted Bronze
Tinted Grey
Obscure
Grid Patterns
Colonial
Prairie
Perimeter
Internal Grid Options
White
Tan
Clay
Brass
White Oak
Light Oak
Dark Oak
Cherry
Maple
Standard Features
Frame Type Impact Replacement (no nailing fin or J-channel)
Exterior Frame Design Beveled
Frame Construction Welded
Sash Construction Welded
Jamb Thickness 3-1/4″
Vinyl Profile Chambered
Vinyl Color White
Spacer System Intercept®
Insulating Glass Unit 1" Impact Laminated Insulating Glass
Glass Type Low E / Argon
Glass Strength Double
Optional Features
Vinyl Colors Tan or Clay
Factory-applied Exterior Colors Mesa Red, Hunter Green, Earth Tone, Brown, Bronze
Woodgrain Interiors White Oak (tan or Clay exterior only), Light Oak, Dark Oak, Maple, Cherry
Glass Double Low E, Tempered
Decorative Glass Tinted Bronze, Tinted Grey, Obscure
Internal Grids: Colonial or Perimeter White, Tan, Clay, Woodgrains (interior only) or Brass

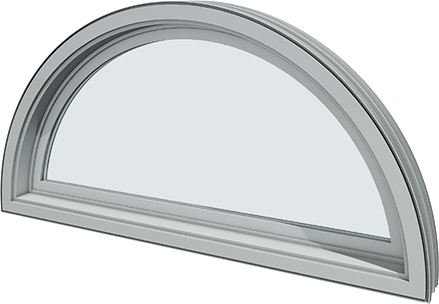

8800 SERIES GEOMETRIC WINDOW

Standard Features
  • Impact-resistant shape windows for coastal applications.
  • Architecturally-beveled exterior frame complements the frame of other 8800 operating units.
  • The impact-resistant 1” laminated insulating glass not only offers dependable impact performance, but also provides UV protection and improved thermal performance.
  • Insulating glass unit has Low E and an Argon gas fill.
  • Vinyl extrusions are impact and corrosion-resistant and their multi-hollow chambered interior design adds strength and helps improve thermal performance.
  • Choose from eleven different shapes: Half Round, Half Round with Leg, Eyebrow, Eyebrow with Leg, Quarter Round, Quarter Round with Leg, Circle, Octagon, Hexagon, Triangle and Trapezoid.
Half Round
Half Round w/ Leg
Quarter Round
Quarter Round w/ Leg
Circle
Oval
Eyebrow
Eyebrow w/ Leg
Triangles
Trapezoid
Pentagon
Hexagon
Octagon
Gothic

8800 series

geometric

shapes

Impact-resistant Laminated Glass

When it comes to impact-resistant windows for coastal areas, the frame system, laminated glass and sealant must work together to resist the catastrophic forces applied during severe weather. Stormforce 8800 windows from Wincore® do just that. Similar to the glass used in car windshields and aircraft windows, 8800’s insulating glass features an impact-resistant plastic interlayer that is bonded between two pieces of glass under heat and pressure. The interlayer remains adhered to the glass fragments and resists penetration, even if the glass pane is broken – protecting against flying debris and hurricane-force winds, forced entry and unwanted outside noise. from entering the home and filters out 99% of the sun’s most damaging rays that fade carpets and draperies.

Importance of Laminated Glass

During a storm, if a building is breached through a broken window, wind may enter the structure and cause an increase in air pressure. This vacuum effect could lift the roof and collapse the walls. Laminated glass helps to preserve the building envelope, keeping the wind and other elements outside.

Interior/Exterior Colors
White
Tan
Clay
Mesa Red *
Hunter Green *
Brown *
Bronze *
Earthtone *

* Factory-applied exterior coated colors.

Interior Woodgrains
White Oak
Light Oak
Dark Oak
Maple
Cherry

White Oak interior only available on Tan or Clay exterior vinyl and all factory-applied coated colors. All other Woodgrain interiors available on all vinyl colors as well as all factory-applied coated colors.

Glass Options
Tinted Bronze
Tinted Grey
Obscure
Grid Patterns
Colonial
Double Sun Starburst*
Starburst
Sunburst
Sunray*
Double Sunray*
Sun Starburst*
Double Sunburst*

* Specialty Grids

Internal Grid Options
White
Tan
Clay
Brass
White Oak
Light Oak
Dark Oak
Cherry
Maple
Standard Features
Frame Type Impact Replacement (no nailing fin or J-channel)
Exterior Frame Design Beveled
Frame Construction Welded
Sash Construction Welded
Jamb Thickness 3-1/4″
Vinyl Profile Chambered
Vinyl Color White
Spacer System Intercept®
Insulating Glass Unit 1" Impact Laminated Insulating Glass
Glass Type Low E / Argon
Glass Strength Double
Optional Features
Vinyl Colors Tan or Clay
Factory-applied Exterior Colors Mesa Red, Hunter Green, Earth Tone, Brown, Bronze
Woodgrain Interiors White Oak (Tan or Clay exterior only), Light Oak, Dark Oak, Maple, Cherry
Glass Double Low E, Tempered
Decorative Glass Tinted Bronze, Tinted Grey, Obscure
Colonial Grids  (all styles) White, Tan, Clay, Woodgrain, Brass
Starburst Grids  (Half Round only) White, Tan, Clay, Woodgrain, Brass
Single & Double Sunburst Grids (Half Round only) White, Tan, Clay, Woodgrain, Brass
Single & Double Sunray Grids (Half Round only) White, Tan, Clay, Woodgrain, Brass
Single & Double Sun Starburst Grids (Half Round only) White, Tan, Clay, Woodgrain, Brass
Performance Data
8800 IMPACT NON-HVHZ
STRUCTURAL PERFORMANCE
MAXIMUM TEST SIZE AIR INFILTRATION RESISTANCE WATER TEST PRESSURE DESIGN PRESSURE OVERALL PERFORMANCE RATING FBC APPROVAL
★ Double Hung (DS / .090 PVB) 48" x 72" 0.08 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL15819.2
★ Double Hung (DS / .090 PVB) 54" x 84" 0.07 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15819.2
★ Double Hung (DST / .090 PVB) 54" x 76" 0.06 cfm/ft2 9.75 psf +55 / -60 psf LC-PG55 FL15819.2
★ Double Hung (DST / .090 SGP) 54" x 76" 0.05 cfm/ft2 9.75 psf +65 / -70 psf LC-PG65 FL15819.2
★ Horizontal Slider (XX) (DS / .090 PVB) 74" x 62" 0.01 cfm/ft2 9.75 psf +55 / -55 psf LC-PG55 FL16092.4
★ Horizontal Slider (XX) (DST / .090 PVB) 74" x 63" 0.02 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16092.4
★ Horizontal Slider (XX) (DST/ .090 SGP) 74" x 63" 0.02 cfm/ft2 9.75 psf +65 / -75 psf LC-PG65 FL16092.4
★ Horizontal Slider (XOX - 333) (DST / .090 PVB) 86.5” x 63” 0.01 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16092.5
★ Horizontal Slider (XOX - 333) (DST / .090 SGP) 86.5” x 63” 0.02 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL16092.5
★ Horizontal Slider (XOX - 333) (DS / .090 PVB) 110" x 62" 0.01 cfm/ft2 9.75 psf +55 / -55 psf LC-PG55 FL16092.6
★ Horizontal Slider (XOX - 424) (DS / .090 PVB) 110" x 62" 0.04 cfm/ft2 9.75 psf +45 / -45 psf LC-PG45 FL16092.5
★ Horizontal Slider (XOX - 424) (DST / .090 PVB) 112" x 63" 0.02 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16092.5
★ Horizontal Slider (XOX - 424) (DST / .090 SGP) 112" x 63" 0.01 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL16092.5
Picture (Fixed) Window (DS / .090 PVB) 48" x 60" <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (DS / .090 PVB) 37" x 84" 0.04 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (3S Glass / .090 PVB) 64" x 64" <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (3S Glass / .090 SGP) 72" x 72" <0.01 cfm/ft2 12.00 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (DST / .090 SGP) 64" x 64" <0.01 cfm/ft2 12.00 psf +65 / -65 psf LC-PG65 FL15816.2
Picture (Fixed) Window (DST / .090 SGP) 37" x 84" <0.01 cfm/ft2 9.75 psf +65 / -65 psf LC-PG65 FL15816.2
Picture (Fixed) Window (3ST Glass / .090 SGP) 72” x 72” <0.01 cfm/ft2 9.75 psf +65 / -65 psf LC-PG65 FL15816.2
Picture/Geometric (Fixed) Window (3ST Glass / .090 SGP) 76” x 63” <0.01 cfm/ft2 15.00 psf +65 / -70 psf LC-PG65 FL15816.3
Casement (DS / .090 PVB) 36” x 72” <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15817.2
Casement (DST / .090 PVB) 36” x 72” <0.01 cfm/ft2 15.00 psf +55 / -50 psf LC-PG55 FL15817.2
Casement (DS T/ .090 SGP) 36” x 72” <0.01 cfm/ft2 15.00 psf +65 / -70 psf LC-PG65 FL15817.2
Awning (DS / .090 PVB) 53” x 32” <0.01 cfm/ft2 9.75 psf +50 / -50 psf LC-PG50 FL15818.2
Awning (DST / .090 PVB) 53” x 32” <0.01 cfm/ft2 15.00 psf +55 / -55 psf LC-PG55 FL15818.2
Sliding Patio Door (DST / .090 PVB) 94.5” x 94.5” 0.07 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL16216.1
Sliding Patio Door (DST / .090SGP) 96” x 96” 0.02 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16216.1
Sliding Patio Door (DST / .090 PVB) 138.9” x 94.5” 0.07 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL16216.2
8400 IMPACT NON-IMPACT
STRUCTURAL PERFORMANCE
MAXIMUM TEST SIZE AIR INFILTRATION RESISTANCE WATER TEST PRESSURE DESIGN PRESSURE OVERALL PERFORMANCE RATING FBC APPROVAL
Double Hung (DS) 48” x 72” <0.01 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL15819.1
Double Hung (DS) 54” x 84” 0.02 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15819.1
Double Hung (DST) 54” x 76” 0.10 cfm/ft2 9.75 psf +65 / -70 psf LC-PG65 FL15819.1
Horizontal Slider (XX) (DS) 74” x 62” <0.01 cfm/ft2 9.75 psf +50 / -50 psf LC-PG50 FL16092.1
Horizontal Slider (XX) (DST) 74” x 63” 0.07 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL16092.1
Horizontal Slider (XOX - 333) (DS) 110” x 62” 0.02 cfm/ft2 9.75 psf +50 / -50 psf LC-PG50 FL16092.3
Horizontal Slider (XOX - 424) (DS) 110” x 62” 0.01 cfm/ft2 9.75 psf +50 / -50 psf LC-PG50 FL16092.2
Horizontal Slider (XOX - 424) (DST) 112” x 63” 0.07 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL16092.2
Picture (Fixed) Window (DS) 48” x 60” <0.01 cfm/ft2 12.00 psf +50 / -50 psf LC-PG50 FL15816.1
Picture (Fixed) Window (3ST Glass) 64” x 64” <0.01 cfm/ft2 12.00 psf +65 / -65 psf LC-PG65 FL15816.1
Picture (Fixed) Window (3ST Glass) 72” x 72” <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15816.1
Picture (Fixed) Window (DST) 37” x 84” <0.01 cfm/ft2 9.75 psf +65 / -65 psf LC-PG65 FL15816.1
Picture (Fixed) Window (DST) 72” x 72” <0.01 cfm/ft2 9.75 psf +55 / -65 psf LC-PG55 FL15816.1
Picture (Fixed) Window (3ST Glass) 76” x 63” <0.01 cfm/ft2 15.00 psf +80 / -80 psf LC-PG80 FL15816.1
Casement (DS) 36” x 71.85” <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15817.1
Casement (DST) 36” x 72” 0.02 cfm/ft2 15.00 psf +65 / -65 psf LC-PG65 FL15817.1
Awning (DS) 53” x 32” <0.01 cfm/ft2 9.75 psf +55 / -55 psf LC-PG55 FL15818.1
Awning (DST) 53” x 32” <0.01 cfm/ft2 15.00 psf +65 / -65 psf LC-PG65 FL15818.1
8800 IMPACT NON-HVHZ
STRUCTURAL PERFORMANCE
MAXIMUM TEST SIZE AIR INFILTRATION RESISTANCE WATER TEST PRESSURE DESIGN PRESSURE OVERALL PERFORMANCE RATING FBC APPROVAL
★ Double Hung (DS / .090 PVB) 48" x 72" 0.08 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL15819.2
★ Double Hung (DS / .090 PVB) 54" x 84" 0.07 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15819.2
★ Double Hung (DST / .090 PVB) 54" x 76" 0.06 cfm/ft2 9.75 psf +55 / -60 psf LC-PG55 FL15819.2
★ Double Hung (DST / .090 SGP) 54" x 76" 0.05 cfm/ft2 9.75 psf +65 / -70 psf LC-PG65 FL15819.2
★ Horizontal Slider (XX) (DS / .090 PVB) 74" x 62" 0.01 cfm/ft2 9.75 psf +55 / -55 psf LC-PG55 FL16092.4
★ Horizontal Slider (XX) (DST / .090 PVB) 74" x 63" 0.02 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16092.4
★ Horizontal Slider (XX) (DST/ .090 SGP) 74" x 63" 0.02 cfm/ft2 9.75 psf +65 / -75 psf LC-PG65 FL16092.4
★ Horizontal Slider (XOX - 333) (DST / .090 PVB) 86.5” x 63” 0.01 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16092.5
★ Horizontal Slider (XOX - 333) (DST / .090 SGP) 86.5” x 63” 0.02 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL16092.5
★ Horizontal Slider (XOX - 333) (DS / .090 PVB) 110" x 62" 0.01 cfm/ft2 9.75 psf +55 / -55 psf LC-PG55 FL16092.6
★ Horizontal Slider (XOX - 424) (DS / .090 PVB) 110" x 62" 0.04 cfm/ft2 9.75 psf +45 / -45 psf LC-PG45 FL16092.5
★ Horizontal Slider (XOX - 424) (DST / .090 PVB) 112" x 63" 0.02 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16092.5
★ Horizontal Slider (XOX - 424) (DST / .090 SGP) 112" x 63" 0.01 cfm/ft2 9.75 psf +60 / -65 psf LC-PG60 FL16092.5
Picture (Fixed) Window (DS / .090 PVB) 48" x 60" <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (DS / .090 PVB) 37" x 84" 0.04 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (3S Glass / .090 PVB) 64" x 64" <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (3S Glass / .090 SGP) 72" x 72" <0.01 cfm/ft2 12.00 psf +50 / -50 psf LC-PG50 FL15816.2
Picture (Fixed) Window (DST / .090 SGP) 64" x 64" <0.01 cfm/ft2 12.00 psf +65 / -65 psf LC-PG65 FL15816.2
Picture (Fixed) Window (DST / .090 SGP) 37" x 84" <0.01 cfm/ft2 9.75 psf +65 / -65 psf LC-PG65 FL15816.2
Picture (Fixed) Window (3ST Glass / .090 SGP) 72” x 72” <0.01 cfm/ft2 9.75 psf +65 / -65 psf LC-PG65 FL15816.2
Picture/Geometric (Fixed) Window (3ST Glass / .090 SGP) 76” x 63” <0.01 cfm/ft2 15.00 psf +65 / -70 psf LC-PG65 FL15816.3
Casement (DS / .090 PVB) 36” x 72” <0.01 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL15817.2
Casement (DST / .090 PVB) 36” x 72” <0.01 cfm/ft2 15.00 psf +55 / -50 psf LC-PG55 FL15817.2
Casement (DS T/ .090 SGP) 36” x 72” <0.01 cfm/ft2 15.00 psf +65 / -70 psf LC-PG65 FL15817.2
Awning (DS / .090 PVB) 53” x 32” <0.01 cfm/ft2 9.75 psf +50 / -50 psf LC-PG50 FL15818.2
Awning (DST / .090 PVB) 53” x 32” <0.01 cfm/ft2 15.00 psf +55 / -55 psf LC-PG55 FL15818.2
Sliding Patio Door (DST / .090 PVB) 94.5” x 94.5” 0.07 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL16216.1
Sliding Patio Door (DST / .090SGP) 96” x 96” 0.02 cfm/ft2 9.75 psf +50 / -55 psf LC-PG50 FL16216.1
Sliding Patio Door (DST / .090 PVB) 138.9” x 94.5” 0.07 cfm/ft2 7.50 psf +50 / -50 psf LC-PG50 FL16216.2
8800 IMPACT NON-HVHZ
THERMAL PERFORMANCE
LOW E (Surface 2) / CLEAR LOW E (Surface 2) / LOW E (Surface 4)
U-Factor SHGC VT U-Factor SHGC SHGC
Double Hung (DS / .090 PVB) 0.32 0.23 0.44 0.29 0.21 0.4
Double Hung (DS / .090 SGP) 0.32 0.23 0.44 0.29 0.21 0.39
Horizontal Slider (XX) (DS / .090 PVB) 0.32 0.22 0.43 0.29 0.21 0.39
Horizontal Slider (XX) (DS / .090 SGP) 0.31 0.22 0.43 0.28 0.21 0.38
Horizontal Slider (XOX - 333) (DS / .090 PVB) 0.32 0.22 0.43 0.29 0.21 0.39
Horizontal Slider (XOX - 424) (DS / .090 PVB) 0.32 0.22 0.43 0.29 0.21 0.39
Horizontal Slider (XOX - 424) (DS / .090 SGP) 0.31 0.22 0.43 0.28 0.21 0.38
Picture (Fixed) Window (DS / .090 PVB) 0.26 0.23 0.5 0.22 0.21 0.45
Picture (Fixed) Window (3S Glass / .090 PVB) 0.26 0.23 0.49 0.22 0.21 0.46
Picture (Fixed) Window (DS / .090 SGP) 0.26 0.23 0.49 0.22 0.21 0.44
Picture/Geometric (Fixed) Window (3S Glass / .090 SGP) 0.26 0.23 0.49 0.22 0.21 0.45
Casement (DS / .090 PVB) 0.26 0.2 0.4 0.23 0.19 0.36
Casement (DS / .090 SGP) 0.26 0.2 0.39 0.23 0.19 0.36
Awning (DS / .090 PVB) 0.26 0.2 0.4 0.24 0.19 0.36
Sliding Patio Door (DST / .090 PVB) and (DST / .090 SGP) 0.31 0.23 0.44 0.28 0.23 0.45
8800 IMPACT HVHZ
THERMAL PERFORMANCE
LOW E (Surface 2) / CLEAR LOW E (Surface 2) / LOW E (Surface 4)
U-Factor SHGC VT U-Factor SHGC SHGC
Double Hung (DS / .090 PVB) 0.32 0.23 0.44 0.29 0.21 0.4
Double Hung (DS / .090 SGP) 0.32 0.23 0.44 0.29 0.21 0.39
Horizontal Slider (XX) (DS / .090 PVB) 0.32 0.22 0.43 0.29 0.21 0.39
Horizontal Slider (XX) (DS / .090 SGP) 0.31 0.22 0.43 0.28 0.21 0.38
Horizontal Slider (XOX - 333) (DS / .090 PVB) 0.32 0.22 0.43 0.29 0.21 0.39
Horizontal Slider (XOX - 424) (DS / .090 PVB) 0.32 0.22 0.43 0.29 0.21 0.39
Horizontal Slider (XOX - 424) (DS / .090 SGP) 0.31 0.22 0.43 0.28 0.21 0.38
Picture (Fixed) Window (3S Glass / .090 SGP) 0.26 0.23 0.49 0.22 0.21 0.45
Geometric (Fixed) Window (3S Glass / .090 SGP) 0.26 0.23 0.49 0.22 0.21 0.45
Casement (DS / .090 PVB) 0.26 0.2 0.4 0.23 0.19 0.36
Casement (DS / .090 SGP) 0.26 0.2 0.39 0.23 0.19 0.36
Awning (DS / .090 PVB) 0.26 0.2 0.4 0.24 0.19 0.36
Sliding Patio Door (DST / .090 PVB) and (DST / .090 SGP) 0.31 0.23 0.44 0.28 0.23 0.45
8400 NON-IMPACT
THERMAL PERFORMANCE
LOW E (Surface 2) / CLEAR LOW E (Surface 2) / LOW E (Surface 4) LOW E (Surface 2) / LOW E (Surface 5)
U-Factor SHGC VT U-Factor SHGC SHGC U-Factor SHGC VT
Double Hung (DS) 0.32 0.23 0.45 0.29 0.22 0.41 0.27 0.19 0.32
Horizontal Slider (XX) (DS) 0.32 0.22 0.44 0.29 0.21 0.4 0.26 0.19 0.31
Horizontal Slider (XOX - 333) (DS) 0.32 0.22 0.44 0.29 0.21 0.4 0.26 0.19 0.31
Horizontal Slider (XOX - 424) (DS) 0.32 0.22 0.44 0.29 0.21 0.4 0.26 0.19 0.31
Fixed Window (3S Glass) 0.27 0.23 0.5 0.23 0.22 0.46 N/A N/A N/A
Fixed Window (DS) 0.26 0.23 0.51 0.22 0.22 0.46 0.2 0.22 0.36
Casement (DS) 0.26 0.21 0.41 0.23 0.19 0.37 0.21 0.18 0.29
Awning (DS) 0.26 0.21 0.41 0.23 0.19 0.37 0.21 0.18 0.29
  • All structural testing performed on non-Impact & non-HVHZ approved products was done so in accordance with AAMA/WDMA/CSA 101/I.S.2/A440
  • All impact testing performed on non-HVHZ was done so in accordance with ASTM E 1886 & ASTM E 1996 ( Missle “D” Windzone 4)
  • All structural testing performed on HVHZ approved products was done so in accordance with TAS 202
  • All impact testing performed on HVHZ approved products was done so in accordance with TAS 201 and TAS 203
  • All Insulated Glass Units (IGUs) are certified in accordance with ASTM E 2190, per NFRC requirement
  • U-Factor was determined by NFRC 100-2010
  • SHGC (Solar Heat Gain Coefficient) was determined by NFRC 200-2010
  • VT (Visible Transmittance) was determined by NFRC 200-2010
  • The use of Capillary Tubes will eliminate the use of Argon gas in the insulated glass unit and will therefore have detrimental impact to the thermal performance of the IGU
  • All thermal performance values listed reflect the use of NO GRIDS
  • Additional simulations are available upon request

★ Double Low E required on these Window Styles to Qualify for Energy Star® Version 6 in the North, North Central Regions & South Central Regions.

DS = Double Strength Glass
DST = Tempered Double Strength Glass
3S = Annealed Triple Strength Glass
3ST = Tempered 3/16″ Glass

Home » Products » Impact Products » Impact WindowsEvery effort has been made to illustrate products accurately, but product changes may occur without notice. Consult your Wincore® representative prior to ordering.
